Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Favorable | Product Name: | Favorable Automatic SPX6 Spreader Machine |
|---|---|---|---|
| Applicable Industries: | Garment,Automotive Interior,Advertising, Luggage,Furniture And Packing | Usage: | Garment And Textile Manufacturing |
| Strength: | High Precision Fully Automatic Applied For All Fabric | Fabric Spreading Width: | 160/190/210/260/310cm |
| Package: | Standard Export Package--ply Wood Carton | Warranty: | 1 Year |
| High Light: | High precision SPX6 Spreader Machine,Fully automatic SPX6 Spreader Machine,all fabric SPX6 Spreader Machine |
||
http://Favorable SPX6 Automatic Spreader Machine

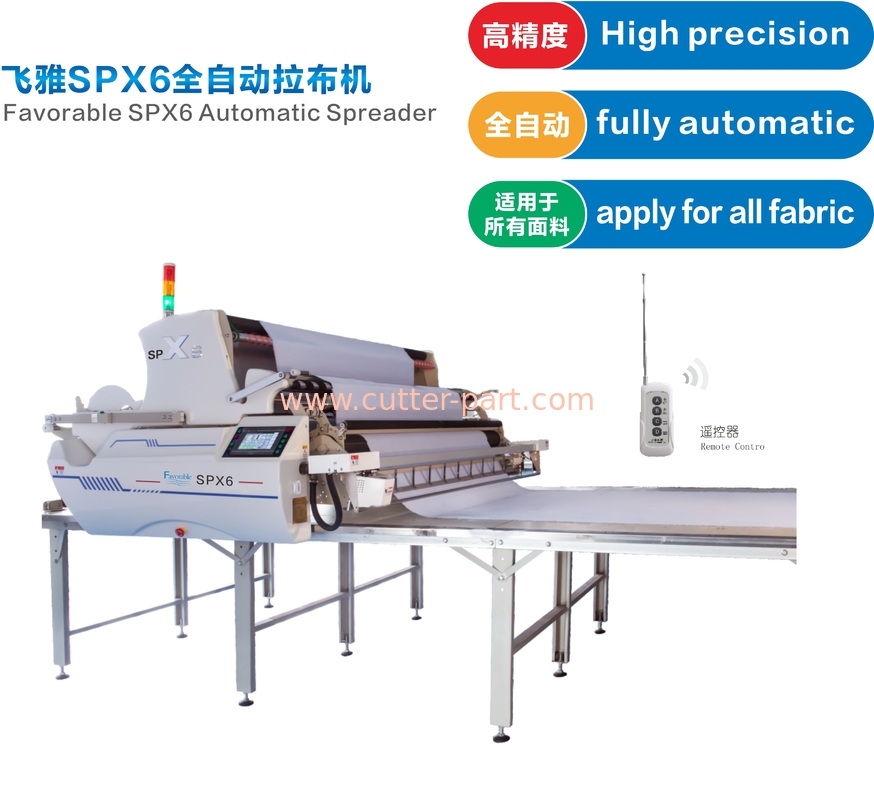

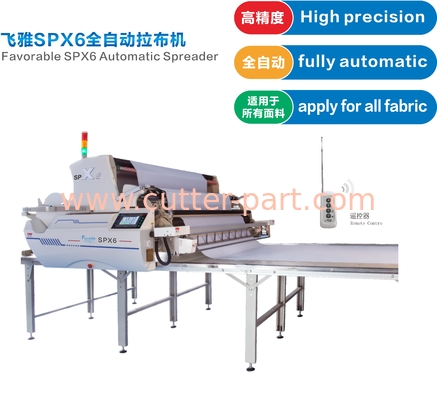

Favorable SPX6 Automatic Spreader Machine – High precision Fully automatic Applied for all fabric
Recommendation points:
1. Fully automatic-one worker can operate! Servo motor control, positioning accuracy up to micron level;
2. Microcomputer automatically calculate, photoelectric sensor feeding cloth, saving time, improve production efficiency;
3. Spread all fabric- knitting/woven, thick/thin, smooth/soft, stretch/curled! Humanized design with device spread fabric easy to have curled edge;
4. PLC control system strengthen photoelectric sensor, sensitivity adjustable, which makes one worker can operate the whole machine;
Main Paramenters:
| Model | SPX6-160 | SPX6-190 | SPX6-210 | SPX6-260 | SPX6-310 |
| Spread Width | 1600mm | 1900mm | 2100mm | 2600mm | 3100mm |
| Maximum fabric weight | 80kg | 110kg | |||
| Maximum roll diameter | 450mm | 450mm | |||
| Maximum driving speed | 98m/min | 85m/min | |||
| Single pull maximum height | 220mm | 220mm | |||
| Double pull maximum height | 160mm | 160mm | |||
| Power | 1.2KW | 1.55KW | |||
| Power requirement | Single phase AC 220V 50Hz 15A | ||||
| Size: length, width, height | 230x165x95cm | 260x165x95cm | 280x165x95cm | 330x165x95cm | 380x165x95cm |
| Machine weight | 400kg | 415kg | 425kg | 475kg | 510kg |
| Panel width | 1835mm | 2135mm | 2335mm | 2835mm | 3335mm |
Company information:
Favorable Group suceed as professional cutting system solution provider, dedicated to providing auto-cutter/spreader/plotter machine, parts and maintanence service over two decades.
Our core value build by our team, which found by a group of technician, we start business to offer spare parts and maintanence service for cutting system(cutter, plotter, spreader) since 2005. Thus we deeply study on machine performance, technique and different solution, to analysize the difference from then and how to integrate their strength and avoid their shortage, well knowing how to mainten the machine efficiently and control the maintence cost.
To respond the trend of various demands on the market and the trust of our long-term cooperated customer, we started developing machine from 2015, aim at provide better solution on machine cost, plotting tech and efficiency.
With continuous technical support from our strategic partners in US/ Japan /Singapore and UK, now we have successfully developed machine
series include:
1.Inkjet plotter; Inkjet cutting plotter; AIS Wide Scan Recorder
2.Spreader
3. Single-ply cutter; Multi-ply cutter
Achieve an annual production capacity of 6,000 sets equipment.
Other recommended products: Favorable Ultra-high speed Inkjet plotter
Main Paramenters:
| Model | LH200-2 2 Heads | LH220-2 2 Heads | LH240-2 2 Heads | LH240-4 4 Heads |
| Printing Density | 600dpi Draft mode:300dpi (Save-ink Mode Is Optional) | |||
| Scanning Speed | (135Sqm/Hr) 300 〜600DPI |
(135Sqm/Hr) 300 〜600DPI |
(135Sqm/Hr) 300 〜600DPI |
(240Sqm/Hr) 300 〜600DPI |
| Max. Width Of Paper | 173cm | 198cm | 235cm | 235cm |
| Max. Plotting & Cutting Width | 165cm | 185cm | 205cm | 185cm |
| Line Quality | Works Precisely, Smoothly, And No Gap Between Two Contiguous Sections. | |||
| Software Compatibility | HPGL (Special Format Can Be Back-ordered) | |||
| Paper Feed System | Accurate Tracking System And Inside Digital Sense System Insure Marker Paper Is Feed Continually And Accurately More Than 3000m Long. | |||
| Paper Installation Mode | Front Or Back Paper-supply System Is Optional. | |||
| PaperTake-up Mode | Take-upautomatically or manually, Can plot many a mass of short marker, and save a lot of time for taking-up paper. On automatic taking-up method, it can work for overnight printing. | |||
Favorable Ligthning Engine Series Inkjet Cutting Plotter
We are pleasure to welcome customer visit our company and guide you a tour to review our full process management from raw material, design, manufacture and storage. Our professional team will take care of the whole process include delivery and technical support, and all our services are offered at excellent prices.
You have our commitment of high quality services, quick response and fast lead time with the most reasonable prices. Patient and professional sales team, technicians will support you from start to the end. All our aim is too deepen our cooperation, and work further for higher goals in the future with our valued customer.
