Product Details:
Payment & Shipping Terms:
|
| Type: | Power Supply | Application: | Auto Cutter XLC7000 Machine |
|---|---|---|---|
| Supply Ability: | 5000 Pcs Per Month | Weight: | 1kgs |
| Packing: | Standard Packing | Shipment: | International Express Service |
| Highlight: | machinery parts,cutting machine parts |
||
Power Supply Ac - Dc , 110w , 4 Output , Emerson Astec LPQ114-B For XLC7000
Quick details :
|
Product description |
Power Supply Ac - Dc , 110w , 4 Output , Emerson Astec LPQ114-B For XLC7000 |
|
Part number |
Power supply |
|
Brand |
Favorable |
|
Application |
For Auto cutter machine XLC7000 model |
|
Delivery time |
Anytime |
Electrical Specifications
Input:
Input range 85 - 264 Vac; 120 - 300 Vdc
Frequency 47 - 440 Hz
Inrush current < 18 A peak @ 115 Vac; < 36 A peak @ 230 Vac, cold start @ 25 °C
Efficiency 70% typical at full load
EMI filter Meets FCC Class B conductedCISPR 22 Class B conductedEN55022 Class B conductedVDE 0878 PT3 Class B conducted
Safety ground leakage current 0.5 mA @ 50/60 Hz, 264 Vac input
Output:
Maximum power 80 W convection 110 W with 30 CFM forced air
Adjustment range ± 5% min. on main; 5 - 25 V on 4th output on LPQ112 and LPQ113
Cross regulation ± 2% on output 1; ±3% on outputs 2, 3 & 4
Hold-up time 20 ms @ 80 W load, 115 VAC nominal line
Overload protection Short circuit protection on all outputs. Case overload protected @ 110-145% above peak rating
Overvoltage protection 5.7 - 6.7 VDC on main output. Latching type, recycle AC to reset

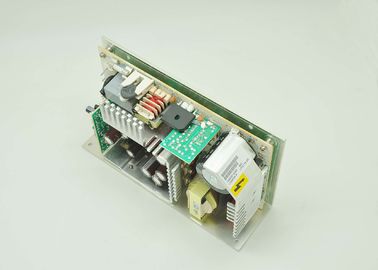

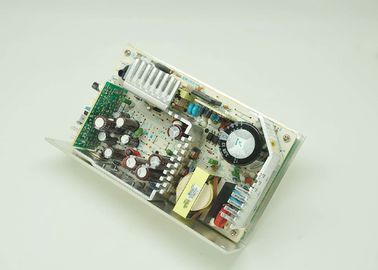

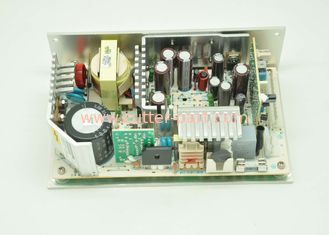

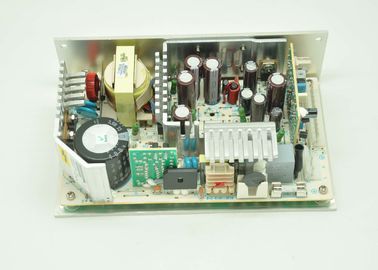

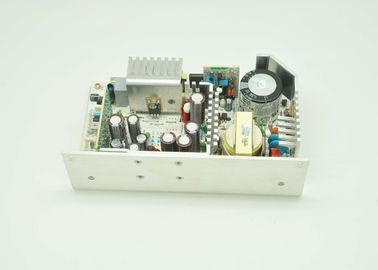

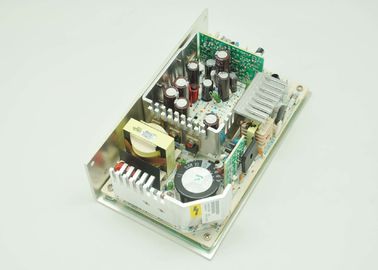

More pictures for this electric power supply as below:
