311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3

Good quality Cutter GT7250 for sales
The Best Seller in the whole world , best quality , low price , Thanks a lot!

—— —— Paul France

Good quality for the price. Happy with purchase, would recommend!

—— —— Nicolas

Really a good company yours, very professionals and reliable.

—— —— Mario Rossi

I'm Online Chat Now

311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3

China 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 supplier
311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 supplier 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 supplier 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 supplier 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 supplier

Large Image :  311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3

Product Details:

Place of Origin: China
Brand Name: Favorable
Certification: ISO2000
Model Number: 311176

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD1-1000PCS
Packaging Details: 10pcs/box
Delivery Time: 24 hours
Payment Terms: T/T, Western Union, Paypal
Contact Now
Detailed Product Description
Product Name: Mean Well Power Supply Part Number: 311176
Application: Lectra M55&MH&MH8 Type: Electronic Parts, Power Supply
Voltage: 24VDC Packaging: Standard Packaging



311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3





Product Detail:



TYPE: Power Supply, Dr-120-24 Ac/Dc Din Rail Power Supply (Psu), Industrial, 1 Output, 120 W, 24 Vdc, 5

PART NO: 311176

ESPECIALLY SUITABLE FOR: M55&MH&MH8



The DR-120-24 from Mean Well is a single output industrial DIN rail power supply. This power supply is approved by UL508, UL60950-1, TUV, EN60950-1 standards.



Features:

· AC input range selectable by switch

· Short circuit, overload, overvoltage and overtemperature protections

. Cooling by free air convection

· Can be installed on DIN rail TS-35/7.5 or 15

.  UL 508(industrial control equipment)approved
.  LED indicator for power on
. 100% full load burn-in test

· Fixed switching frequency is 55KHz

· Rated voltage of 24V

· Rated current of 5A

· Output power is 120W

· Input voltage range from 88VAC to 132VAC (176VAC to 264VAC by switch)

· Efficiency up to 84%

· Working temperature range from -10°C to 60°C

.  1 year warrantey

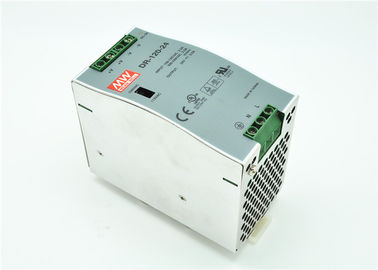

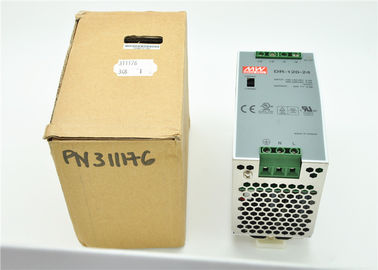

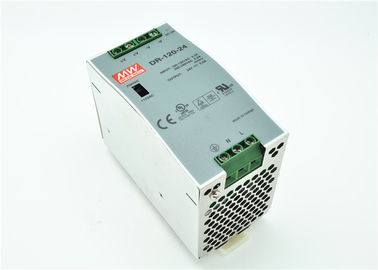

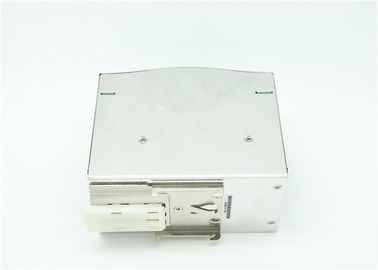

More photos as below for your reference,



311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3

311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3




Company Profile and Advantage:

311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3

311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3



Payment and Delivery Detail:



311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3



Below more bristles information for Lectra cutter machines for your reference:



704234 Propack Bristle Block FP/FX/iX/Q25 (x250)
131241 Bristle Block FP/FX/iX/Q25 (x50)
131181 Bristle Block MH/MH8/M88/iH5/iH8/Q50/Q80 (x30)
704186 Propack Bristle Block MH/MH8/M88/iH5/iH8/Q50/Q80 (x180)
704233 Propack Bristle Block MX/MX9/iX6/iX9 (x180)
131240 Bristle Block MX/MX9/iX6/iX9 (x30)
